Unimat Metal Line 6 in 1

$899.00
Out of stock
SKU
CTUNIMATMETAL61
6 in 1 Metal workshop!

Unimat MetalLine 6in1

Slides, tailstock and intermediate pieces are composed of metal, manufactured and treated on cutting-edge CNCmachines for perfect alignment. This guarantees a high level of precision despite the modularity of all machines. The UNIMAT MetalLine excels in model making, technical education, as well as in industrial use with features like:

  • enhanced stability and precision of the entire system
  • modular structure and easy handling
  • lowest tolerances due to precisely fitting bearing seats
  • true-running accuracy through dust protected industrial ball bearings
  • re-adjustable backlash and adjustable dovetail guides
  • flat milled, grinded and matched components
  • increased wall thickness of the profiles (torsion resistant and stable)
  • metal zero-adjustable hand wheels (0.05mm scale)

The UNIMAT MetalLine allows for the building of the followingmachine variations:

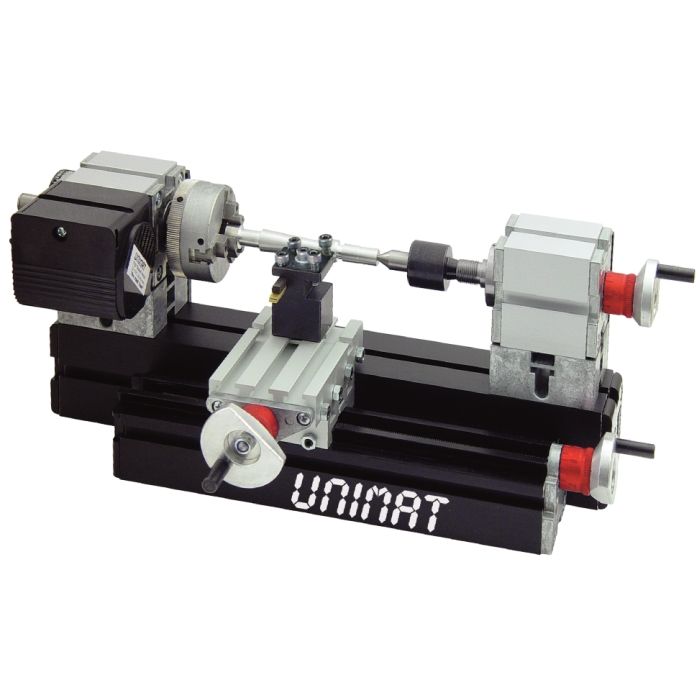

Lathe

With distance between centers of 90 mm (optionally expandable), swingover bed of 50 mm and equipped with a two position tool post aluminum, brass, copper and other materials can be processed precisely. With the 3-jaw chuck work pieces with ø up to 56 mm (internal) and 65 mm (external) can be clamped.
Travel: Z-axis 145 mm, X-axis 32 mm

Vertical Mill / Drill

Two slides are used for the set-up of the cross table, the third slide is used for the Z-axis. With the hand wheels, holes can be drilled at exact positions and with  exact depth.
Travel X-axis 145 mm, Y- and Z-axis 32 mm. Collets with a clamping range from 1 to 6 mm.

Horizontal Mill

Using 3 slides allows for processing work pieces 3-dimensionally. Travel: X-axis 145 mm, Y- and Z-axis 32 mm (optionally expandable).

Collets with a clamping range from 1 to 6 mm.



Center Drill Machine

With the precision collets, tool bits from 1 to 6 mm can be inserted into the tailstock. The tailstock sleeve allows for a precise travel of 30 mm. The hand wheel with 0.05 mm scale guarantees perfect drilling results and exact depth-control.

Handheld Drill / Sander

Handheld Drill: For drilling and milling bits with shank diameters1 to 6 mm.

Handheld Sander: With a 50 mm sanding disk also suitable for places hard to reach.



Contents [No. 160 200]

Machine bed 271 mm + 140 mm, 12 V motor, 12 V safety adaptor, headstock, tailstock, 2x cross slides 90 mm, longitudinal slide 200 mm, metal intermediate pieces, metal-3 jaw chuck, 10 precision collets from 1 to 6 mm, stabilization plates, steel face plate, stabilizing angle, precision live center etc.
For upgrading UNIMAT 1 BASIC or CLASSIC all MetalLine parts are available as accessories. Extensions like various milling heads ground steel-chucks, dividing attachment allow for upgrading the MetalLine at one‘s pleasure – even upgrading to CNC is easily possible. See accessories catalogue [VS1 606].
